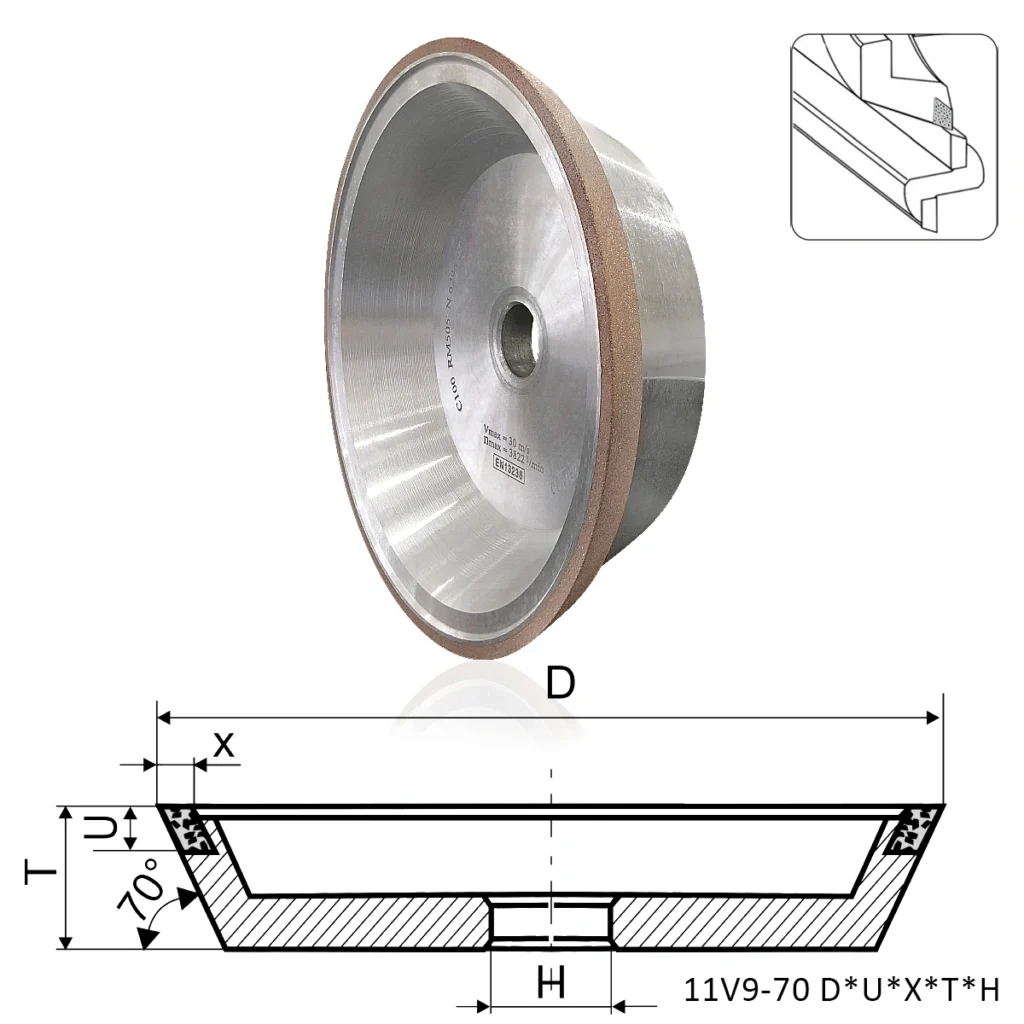

11V9-70. Conical cup grinding wheels
Application:
Sharpening and precision finishing of cutting tools made from cemented carbides on their rear and side surfaces.
| Catalog Number | D, mm | U, mm | X, mm | T, mm | H, mm |
|---|---|---|---|---|---|
| 4-0101 | 50 | 3 | 1.5 | 20 | 16 |
| 4-0102 | 75 | 6 | 2 | 32 | 20 |
| 4-0103 | 100 | 6 | 2 | 40 | 20 |
| 4-0104 | 100 | 10 | 2 | 40 | 20 |
| 4-0105 | 125 | 6 | 3 | 40 | 32 |
| 4-0106 | 125 | 8 | 3 | 40 | 32 |
| 4-0107 | 125 | 10 | 3 | 40 | 32 |
| 4-0108 | 150 | 6 | 3 | 40 | 32 |
| 4-0109 | 150 | 10 | 3 | 40 | 51 |
