Description

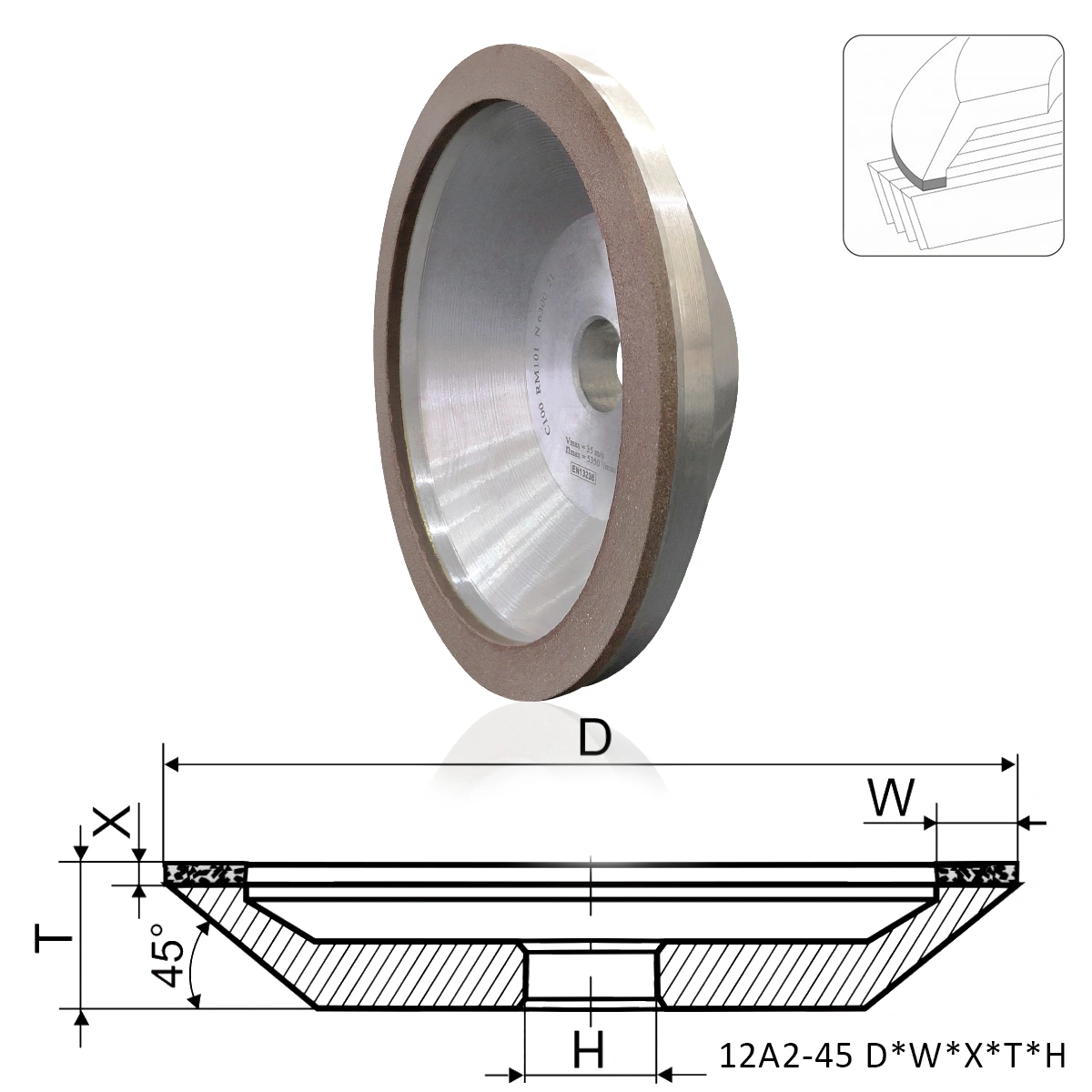

12A2-45. Cup grinding wheels
Application:
Designed for sharpening and finishing multi-edge tools made of cemented carbide with straight and helical teeth. Used for machining the front and rear surfaces of lathe knives, drills, broaches, reamers, and other similar tools.
| Catalog number | D, mm | W, mm | X, mm | T, mm | H, mm |
|---|---|---|---|---|---|
| 4-0004 | 50 | 3 | 3 | 21 | 16 |
| 4-0117 | 75 | 3 | 3 | 21 | 20 |
| 4-0118 | 75 | 6 | 3 | 21 | 20 |
| 4-0015 | 100 | 3 | 3 | 32 | 20 |
| 4-0016 | 100 | 5 | 3 | 32 | 20 |
| 4-0017 | 100 | 10 | 3 | 32 | 20 |
| 4-0027 | 125 | 3 | 3 | 40 | 32 |
| 4-0028 | 125 | 5 | 3 | 40 | 32 |
| 4-0029 | 125 | 10 | 3 | 40 | 32 |
| 4-0031 | 125 | 5 | 5 | 42 | 32 |
| 4-0040 | 150 | 10 | 3 | 40 | 32 |
| 4-0043 | 150 | 10 | 5 | 42 | 32 |
| 4-0041 | 150 | 20 | 3 | 40 | 32 |
| 4-0044 | 150 | 20 | 5 | 42 | 32 |
| 4-0073 | 200 | 10 | 3 | 50 | 51 |
| 4-0074 | 200 | 20 | 3 | 50 | 51 |
| 4-0076 | 200 | 20 | 5 | 52 | 51 |
| 4-0092 | 250 | 20 | 3 | 50 | 76 |
