Description

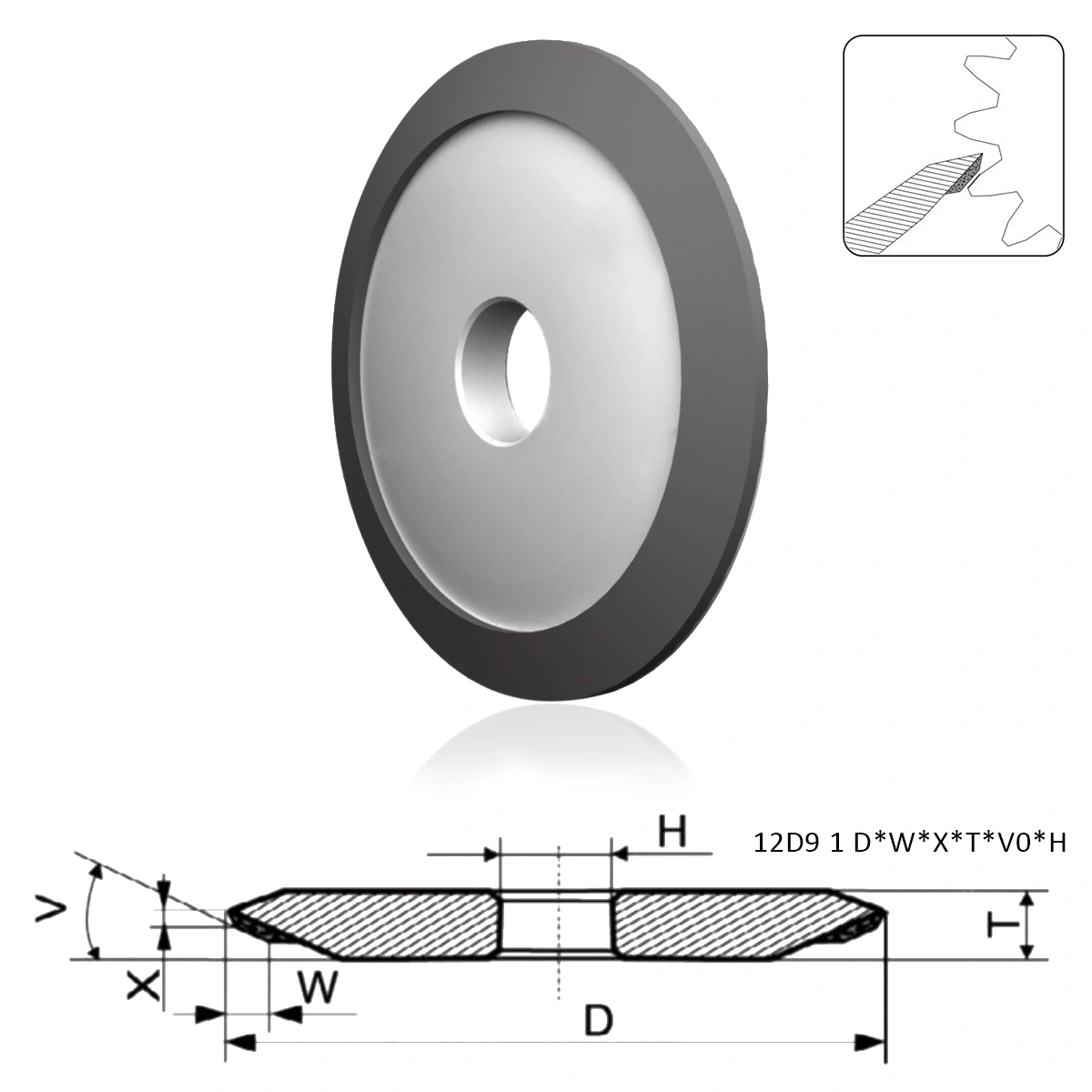

12D9. Grinding wheels
Application:
Sharpening and precision finishing of cutting tools on their front and rear surfaces.
| Catalog number | D, mm | W, mm | X, mm | T, mm | V,° | H, mm |
|---|---|---|---|---|---|---|
| 5-0102 | 125 | 4 | 2 | 11 | 20 | 32 |
| 5-0104 | 125 | 8 | 2 | 11 | 20 | 32 |
| 5-0106 | 150 | 8 | 3 | 13 | 20 | 32 |
| 5-0108 | 150 | 16 | 3 | 13 | 20 | 32 |
| 5-0113 | 200 | 25 | 3 | 16 | 15 | 32 |
| 5-0114 | 200 | 25 | 3 | 16 | 20 | 32 |
| 5-0126 | 250 | 16 | 3 | 20 | 20 | 76 |
| 5-0125 | 250 | 16 | 3 | 20 | 15 | 76 |
