Description

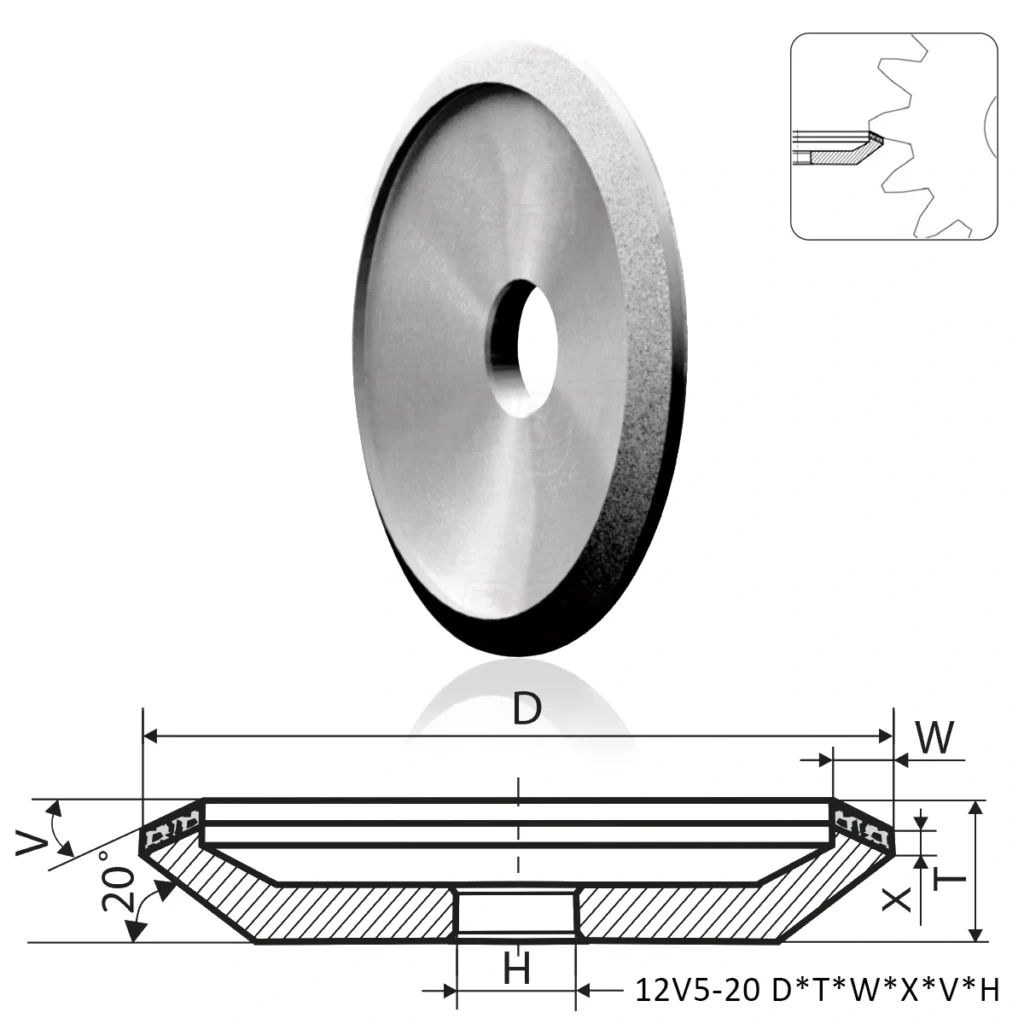

12V5-20. Dish grinding wheels
Application:
– Sharpening and precision finishing of multi-edge tools made of cemented carbides with straight and helical teeth on the rear surfaces of knives, drills, and other tools;
– Machining of semiconductor materials, ceramics, quartz, and other materials.
| Catalog number | D, mm | T, mm | W, mm | X, mm | V, ° | H, mm |
|---|---|---|---|---|---|---|
| 5-0078 | 75 | 10 | 5 | 2 | 25 | 20 |
| 5-0080 | 100 | 10 | 3 | 2 | 25 | 20 |
| 5-0086 | 125 | 13 | 5 | 2 | 25 | 32 |
| 5-0090 | 150 | 16 | 10 | 3 | 25 | 32 |
