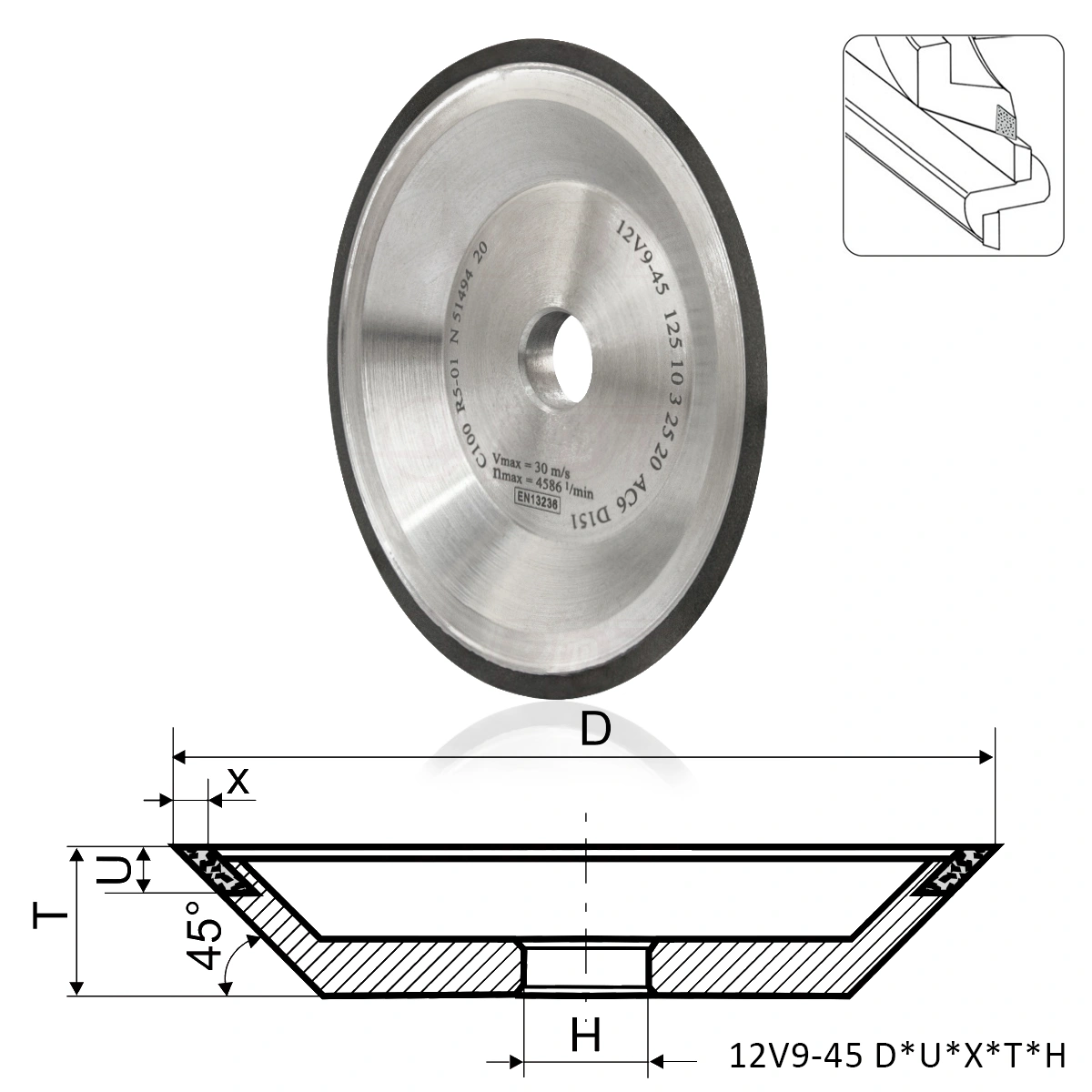

12V9-45. Conical Cup Grinding Wheels
Application:
Sharpening and precision finishing of cutting tools on their rear surfaces.
| Catalog number | D, mm | U, mm | X, mm | T, mm | H, mm |
|---|---|---|---|---|---|
| 4-2513 | 75 | 10 | 4 | 12 | 31,75 |
| 4-2503 | 75 | 6 | 1,5 | 18 | 31,75 |
| 4-1503 | 75 | 6 | 2 | 20 | 20 |
| 9-3154 | 75 | 6 | 3,5 | 20 | 10 |
| 4-2510 | 100 | 6 | 1,5 | 18 | 31,75 |
| 4-1510 | 100 | 10 | 2 | 20 | 20 |
| 4-2512 | 100 | 10 | 3 | 20 | 31,75 |
| 9-3108 | 125 | 10 | 3 | 25 | 20 |
