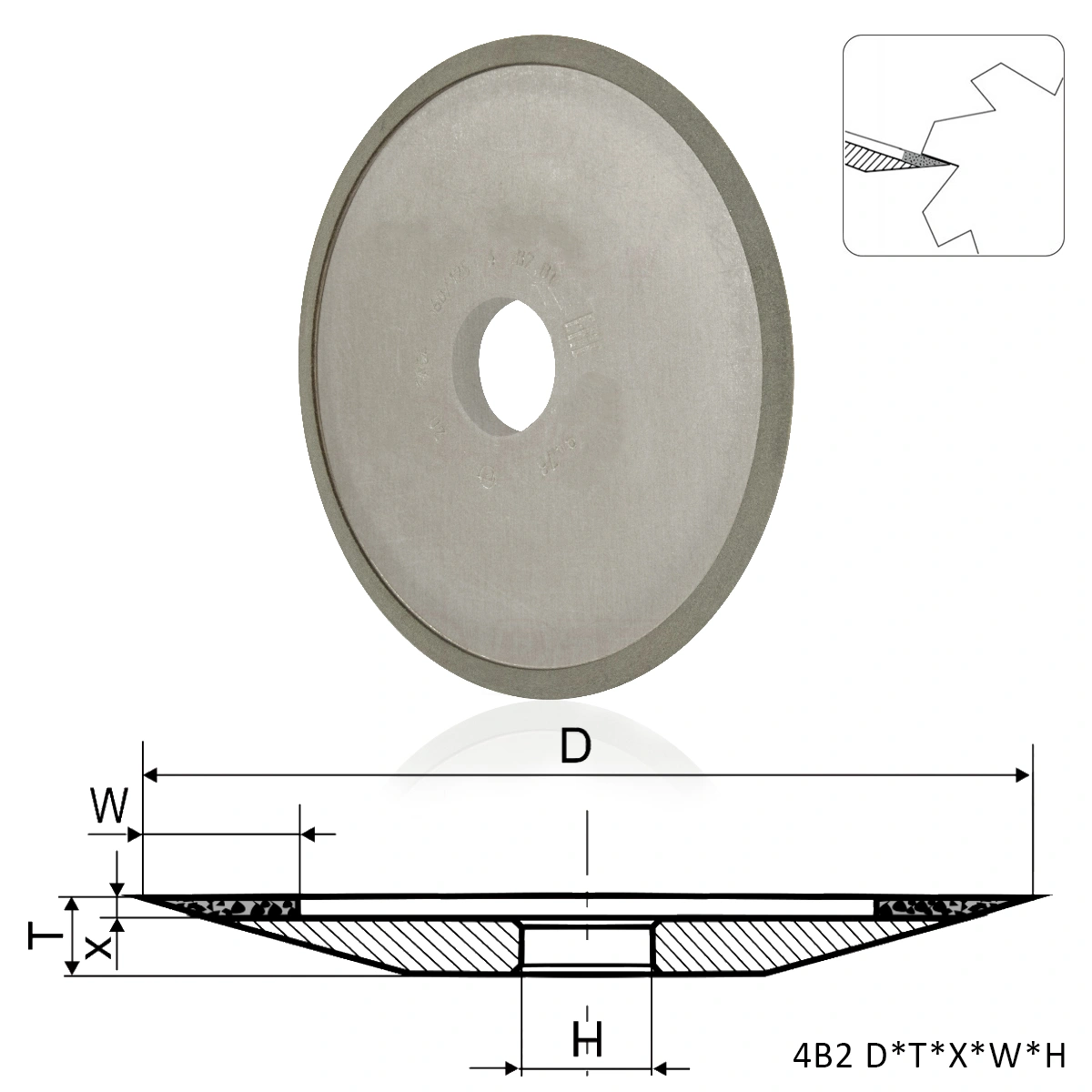

4B2. Dish Grinding Wheels
Application:
Sharpening and precision finishing of the front surfaces of reamer teeth, milling cutters, hob cutters, circular saw blades, broaches, and other tools.
| Catalog number | D, mm | T, mm | X, mm | W, mm | α,° | H, mm |
|---|---|---|---|---|---|---|
| 8-7002 | 100 | 10 | 1,5 | 6 | 20 | 31,75 |
| 8-7004 | 150 | 12 | 1,5 | 6 | 20 | 31,75 |
| 8-7008 | 125 | 10 | 2 | 6 | 20 | 32 |
| 8-7009 | 150 | 12 | 1,5 | 6 | 20 | 32 |
| 8-7010 | 100 | 10 | 1,5 | 6 | 20 | 32 |
