Description
Application:
– Sharpening and precision finishing of sintered carbide tools (cutters, drills, reamers, and others);
– Flat grinding of glass and other non-metallic materials.

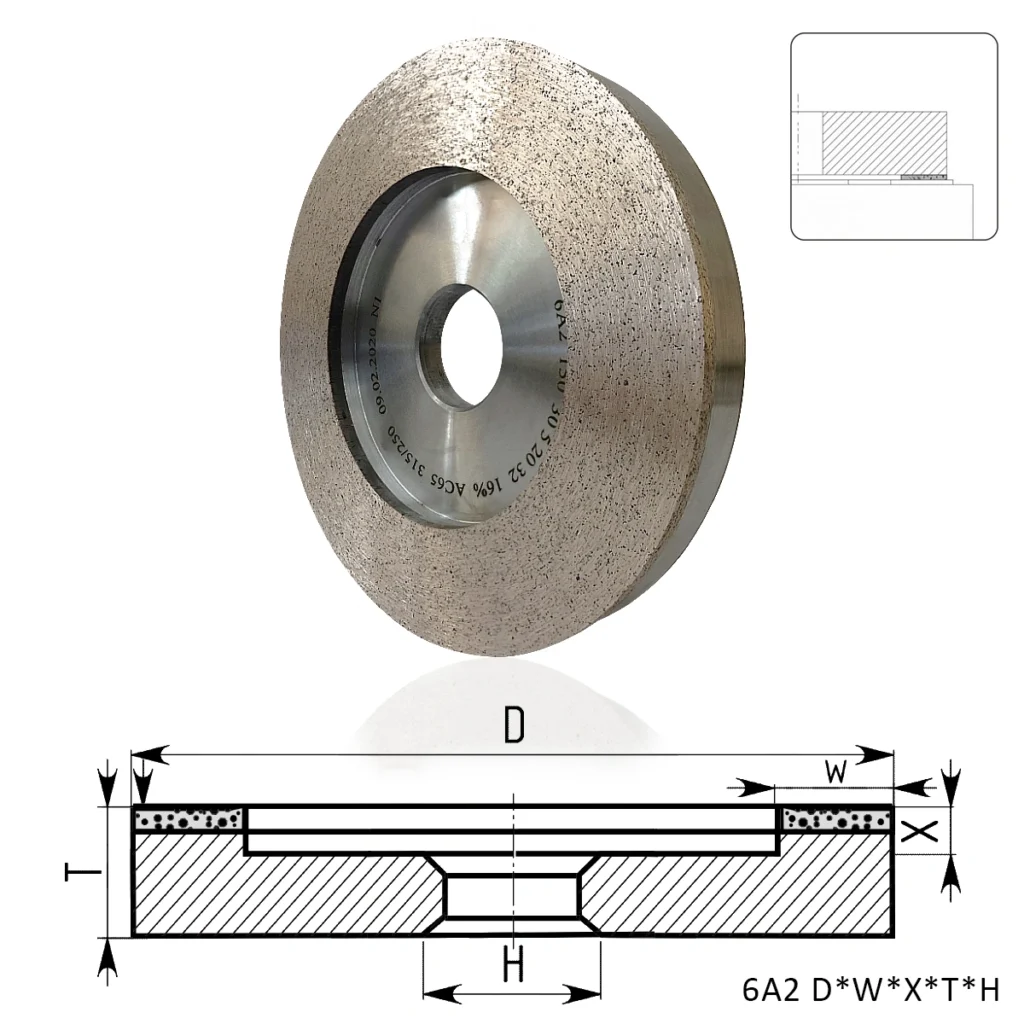

| Catalog number | D, mm | W, mm | X, mm | T, mm | H, mm |
|---|---|---|---|---|---|
| 3-0001 | 50 | 3 | 2 | 22 | 16 |
| 3-0002 | 50 | 5 | 2 | 22 | 16 |
| 3-0004 | 75 | 5 | 2 | 22 | 20 |
| 3-0005 | 75 | 10 | 2 | 22 | 20 |
| 3-0007 | 100 | 5 | 2 | 22 | 20 |
| 3-0008 | 100 | 10 | 2 | 22 | 20 |
| 3-0009 | 100 | 15 | 2 | 22 | 20 |
| 3-0011 | 100 | 5 | 4 | 24 | 20 |
| 3-0012 | 100 | 10 | 4 | 24 | 20 |
| 3-0013 | 100 | 15 | 4 | 24 | 20 |
| 3-0019 | 125 | 6 | 2 | 22 | 32 |
| 3-0020 | 125 | 10 | 2 | 22 | 32 |
| 3-0021 | 125 | 15 | 2 | 22 | 32 |
| 3-0023 | 125 | 6 | 4 | 24 | 32 |
| 3-0024 | 125 | 10 | 4 | 24 | 32 |
| 3-0025 | 125 | 15 | 4 | 24 | 32 |
| 3-0026 | 150 | 6 | 4 | 24 | 32 |
| 3-0027 | 150 | 10 | 4 | 24 | 32 |
| 3-0028 | 150 | 20 | 4 | 24 | 32 |
| 3-0035 | 150 | 6 | 4 | 26 | 51 |
| 3-0036 | 150 | 10 | 6 | 26 | 51 |
| 3-0037 | 150 | 20 | 6 | 26 | 51 |
| 3-0038 | 200 | 10 | 4 | 29 | 51 |
| 3-0039 | 200 | 20 | 4 | 29 | 51 |
| 3-0057 | 250 | 20 | 4 | 29 | 76 |
| 3-0058 | 250 | 40 | 4 | 29 | 76 |
| Catalog number | D, mm | W, mm | X, mm | T, mm | H, mm |
|---|---|---|---|---|---|
| 3-2111 | 50 | 4 | 2 | 10 | 16 |
| 3-0170 | 100 | 35 | 5 | 20 | 20 |
| 3-0171 | 150 | 30 | 5 | 20 | 20 |
| 3-1306 | 250 | 60 | 3 | 23 | 51 |
| 3-1401 | 500 | 50 | 8 | 34 | 325 |
