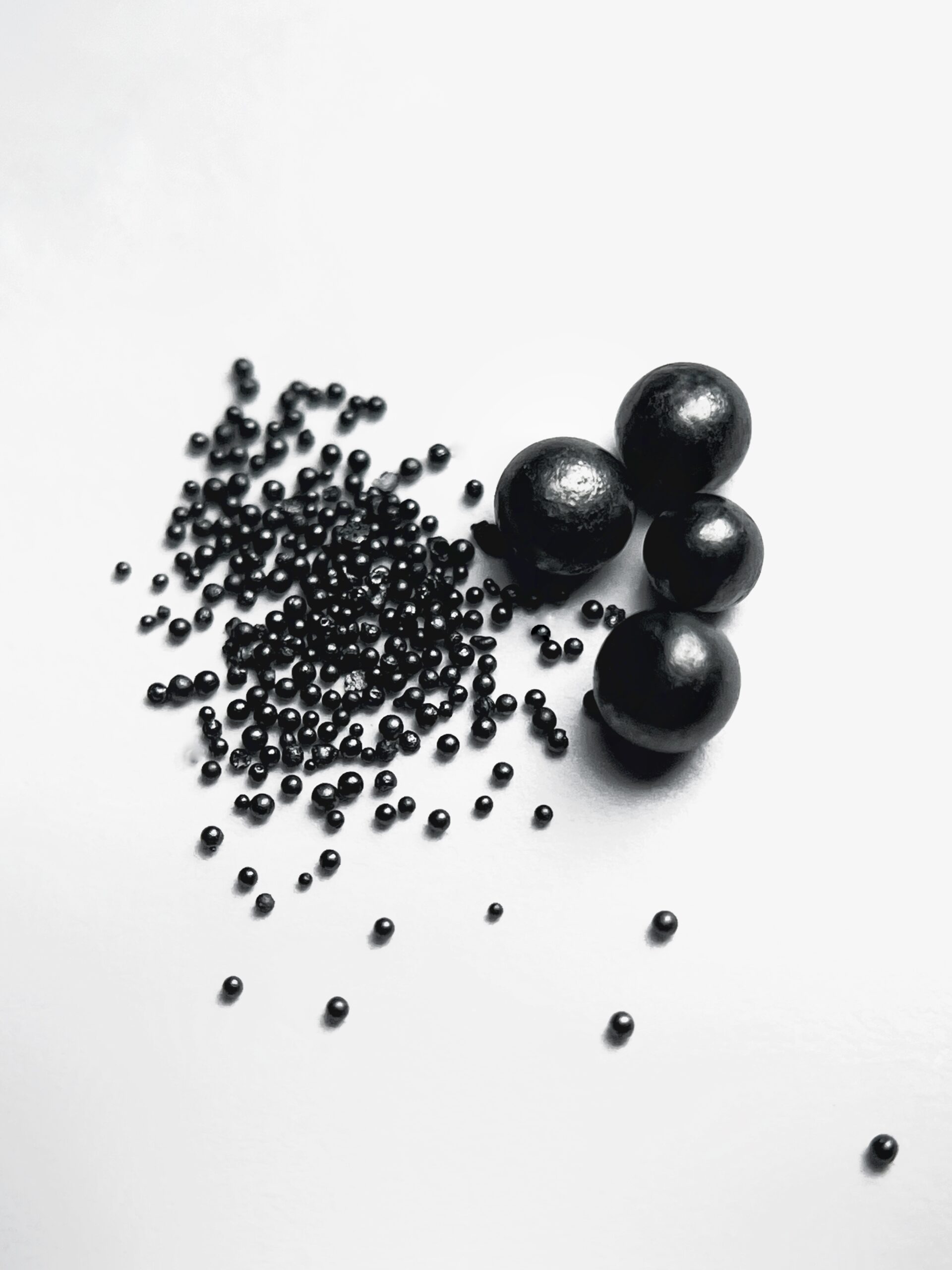

Cast Steel Shot – Spherical Steel Abrasive S 110 – 1100 (SAE J444)

Types of S: S1110, S930, S780, S660, S550, S460, S390, S330, S280, S230, S170, S110
Product application: Removal of rust, scale, and coatings. Increasing metal durability. Removal of defects and residual sand from castings. Improvement of coating adhesion.
Packaging: Polyethylene bags of 25 kg, packed in cartons on a 1000 kg pallet or big-bags on a 1000 kg pallet.

Do you need help?

Write to us

Discounts for regular customers and large orders

Description

Chemical Composition (according to SAE J827 standard):

Fe, %

C, %

Mn, %

Si, %

S, %

P, %

96,5-98,0

0,8-1,2

0,6-1,2

0,5-1,0

≤ 0.05

Size Characteristics:

Standard Sieve Opening Size, mm	S1110	S930	S780	S660	S550	S460	S390	S330	S280	S230	S170	S110
4.75
4.00	0
3.35		0
2.80	>90		0
2.36	>97	>90		0
2.00		>97	>85		0	0
1.70			>97	>85		<5	0
1.40				>97	>85		<5	0
1.18					>97	>85		<5	0
1.00						>96	>85		<5	0
0.85							>96	>85		<10	0
0.71								>96	>85		<10
0.60									>96	>85		0
0.50										>97		<10
0.43											>85
0.36											>97
0.30												>80
0.18												>90
0.13

Explanation:

The number in the table indicates the maximum or minimum allowable percentage for a given abrasive size passing through the specified sieve opening.

Symbols such as “>90” or “>85” indicate that more than 90% or 85% of the abrasive should be smaller than the sieve opening.
